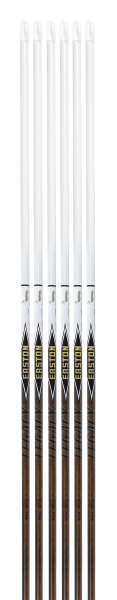

Eichler and Easton are an unbeatable combo! Introducing Easton Carbon Legacy™ 5MM Fred Eichler Edition carbon arrow shafts! These 5MM shafts feature the elegance, power, and precision of Easton's Micro X diameter with .204" ID for better penetration and increased kinetic energy!
With the Easton Legacy 5MM arrow shaft you can honor traditional archery while embracing modern technology. This quality carbon arrow shaft features a traditional wood grain look on a high-quality carbon fiber arrow shaft. Plus, they've added a high visibility arrow wrap with Fred Eichler's logo for easy arrow retrieval.
Easton Carbon Legacy™ 5MM arrow shafts are installed with 5MM X Nocks, with 16 grain 5MM HIT inserts, insert tool, chamfer stone, and epoxy adhesive included.
Enjoy accuracy, stability, strength, and tradition with Easton Carbon Legacy™ arrow shafts!
Sold by the 6-pack or 12-pack. Available in 340, 400, 500, 600, and 700 spines. Please specify.
See Easton Carbon Legacy™ 5MM Fletched Arrows
See Easton Carbon Legacy™ 5MM Bare Shaft Test Kit
- 5MM X Nocks installed
- 5MM 8-32 HIT inserts included
- Constructed of high-quality carbon fiber
- Realistic wood grain finish with a high-visibility Eichler arrow wrap
- .204" ID
- Straightness ±.003"
Easton Carbon Legacy™ Carbon Shafting Specifics
| Spine | Point | GPI | OD | Length | Insert | Carbon Collar | |
| 340 | 9/32" | 9.8 | .272 | 34" | 5MM 8-32 HIT | 5MM X Nock | G |
| 400 | 9/32" | 8.8 | .269 | 34" | 5MM 8-32 HIT | 5MM X Nock | F |
| 500 | 9/32" | 8.0 | <.261 | 34" | 5MM 8-32 HIT | 5MM X Nock | -- |
| 600 | 9/32" | 7.1 | .258 | 34" | 5MM 8-32 HIT | 5MM X Nock | E |
| 700 | 9/32" | 6.8 | .251 | 34" | 5MM 8-32 HIT | 5MM X Nock | -- |
| Straightness ±.003" Weight ±2 | |||||||
