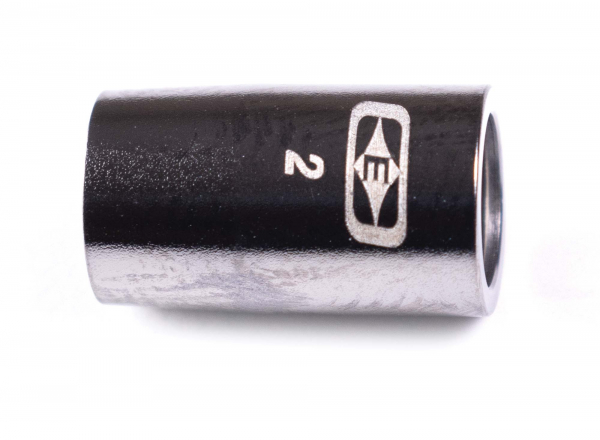

Add strength and power to your arrows with Easton Archery HIT Collars. These hardened stainless steel collars increase the impact strength of your arrows using Easton's popular HIT system.
HIT Collars are offered in nine sizes to fit a variety of arrow spines and brands. They measure approximately ½" long and are tapered on the back end for a smooth transition from shaft to collar for easier arrow pulling from targets. The Inside Diameter (ID) of each collar is listed in the chart below, it is best to match exactly with your arrow shafts' Outside Diameter (OD), or just slightly larger.
We recommend to epoxy carbon collars in place. It fills in any space between the collar and the shaft due to tolerance differences.
Sold by the 6-pack.
HIT Collar specifics
| Collar Number | Collar I.D. | Grain Weight |
Traditional Only
Barebow Spine |
5MM Axis Spine | 5MM FMJ Spine | 5MM Carbon Legacy Spine | Easton 5.0 Match Grade Spine | Traditional Only® Iron Oak |
| #0.5 | .255" | 22 gr | -- | -- | -- | -- | 400, 500 | 500, 600 |
| #1 | .259" | 21 gr | 700 | 600, 500 | -- | 700, 600 | 340 | 400 |
| #1.5 | .263" | 20 gr | -- | -- | 340 | -- | -- | -- |
| #2 | .266" | 19 gr | 600, 500 | 400 | 400 | 500 | 300 | 350 |
| #2.5 | .269" | 17 gr | -- | 340 | -- | 400 | -- | -- |
| #3 | .272" | 17 gr | 400 | 340 | 340, 250 | -- | 250 | 300 |
| #4 | .277" | 17 gr | 340 | 300 | 300 | 340 | 200 | -- |
| #5 | .282" | 16 gr | 300, 260 | 260 | -- | -- | -- | -- |
| #6 | .290" | 15 gr | -- | 200 | -- | -- | -- | -- |
