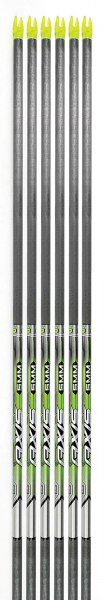

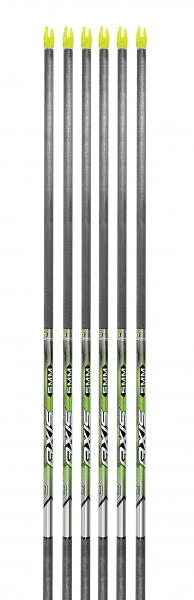

It's time to go faster, deeper, and deadlier with Easton Axis 5MM Match Grade arrow shafts!
These 5MM small diameter (.204" ID) arrow shafts are proven killers, with uniform Acu-Carbon™ construction. Acu-Carbon™ is a single die manufacturing method that results in amazingly consistent spine and weight from dozen to dozen, giving you truer flight and pinpoint accuracy.
The walls of this high-strength carbon-composite arrow are thicker without adding to the weight. So you enjoy greater strength and more kinetic energy. The Axis 5MM Match Grade arrow isn't as affected by crosswinds, giving you better speed and accuracy. Plus, it has less friction both in flight and as it hits its target.
Aluminum 5MM HIT inserts are included, and 5MM X Nocks are pre-installed.
Axis 5MM Match Grade arrow shafts also come with HIT Collars. Easton listened to some of the top shooters and bowhunters in designing these collars. HIT Collars increase the impact strength of your arrows using Easton's popular HIT system. They are built from hardened stainless steel, and come in 6 different sizes to fit each of the Axis 5MM Match Grade spines.
Sold by the dozen. Available in spines of 200, 260, 300, 340, 400, 500, and 600. Please specify.
Please Note: Nock colors may vary.
- 5MM small diameter
- Aluminum HIT 8-32 inserts included
- 5mm X Nocks pre-installed
- HIT Collars included
- High-strength carbon-composite fibers
- Uniform Acu-Carbon™ construction
| Axis 5MM Match Grade specifics | ||||||
|---|---|---|---|---|---|---|
| Spine | Point | GPI | Length | Insert | Nock | O.D. |
| 200 | 9/32" | 12 | 34" | 16 gr | X | .286" |
| 260 | 9/32" | 11.5 | 34" | 16 gr | X | .280" |
| 300 | 9/32" | 10.7 | 32.5" | 16 gr | X | .275" |
| 340 | 9/32" | 9.5 | 32" | 16 gr | X | .267" |
| 400 | 17/64" | 9.0 | 31.5" | 16 gr | X | .264" |
| 500 | 17/64" | 8.1 | 31" | 16 gr | X | .256" |
| 600 | 17/64" | 7.2 | 30.5" | 16 gr | X | .253" |
Straightness ±.001" | ||||||
| HIT Collar Specifics | ||||
|---|---|---|---|---|
| Arrow | Arrow O.D. | Collar I.D. | Weight | Collar # |
| 200 | .286" | .290" | 15 gr | 6 |
| 260 | .280" | .282" | 15.6 gr | 5 |
| 300 | .275" | .277" | 17 gr | 4 |
| 340 | .267" | .271" | 17 gr | 3 |
| 400 | .264" | .266" | 19 gr | 2 |
| 500 | .256" | .258" | 21 gr | 1 |
| 600 | .253" | .258" | 21 gr | 1 |
Services Available Any service requested may delay shipment. Items with services applied are non-refundable.
Cut Shafts to Length: Have your carbon arrows cut to length. The length is measured from the valley of the nock to the end of the shaft. Minimum length is 27". Tolerance for cut length is ±1/16".
Install Point Inserts: Choose this option to have our experts install your Point Inserts in your shafts. We use epoxy style adhesives on all inserts and most points. Once they are installed, they are permanent. If you want us to use different inserts or adapters (i.e. brass point inserts), please put a comment on your order during checkout referencing what item numbers to use together.
Standard Fletch: Our experienced fletchers will 3-fletch your arrow shafting with 5" shield left wing turkey feathers. The cock feather will be traditional barred and the two hen feathers will be your choice of white, yellow, red, or fluorescent lime (same color for all arrows). Hen feather color can be requested and will be fletched on a CLEAR cap wrap. No substitutions. Allow 4-7 additional business days for your order to be processed.
If you prefer to customize your shaft with additional options, please use our Arrow Builder
