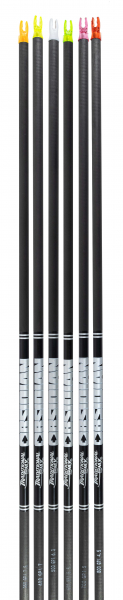

Dial in your perfect arrow flight with confidence using the Traditional Only® Obsidian Carbon Shaft Test Kits. These convenient kits include a selection of four different spine weights, allowing you to experiment and discover which spine performs best with your bow and shooting style before committing to a full dozen.
Choose between Obsidian Carbon Shafts or Obsidian 3K Carbon Shafts.
Both shaft types measure 32" in length and feature a .2445" inside diameter, providing versatility for a wide range of inserts and components.
Whether you're fine-tuning your setup for hunting or target shooting, the Traditional Only® Obsidian Carbon Shaft Test Kits help you take the guesswork out of spine selection, so you can build arrows that fly true and hit hard.
Available in three different test kits with four spines in each kit:
- Kit A - Obsidian 800, 700, 600, 500
- Kit B - Obsidian 600, 500, 400, 350
- Kit C - Obsidian 3K 600, 500, 400, 350
| Traditional Only® Obsidian Carbon Shafting Specifics | ||||||||
|---|---|---|---|---|---|---|---|---|
| Spine | Point | OD | GPI | Length | Insert | Nock |
Point
Collar |
Nock
Collar |
| 350 | 5/16" | 0.288" | 7.5 | 32" | 14 gr |
Obsidian Nock
Fl-Orange |
B | B |
| 400 | 5/16" | 0.286" | 7 | 32" | 14 gr |
Obsidian Nock
Fl-Yellow |
L | -- |
| 500 | 5/16" | 0.282" | 6.3 | 32" | 14 gr |
Obsidian Nock
White |
L | -- |
| 600 | 5/16" | 0.279" | 5.5 | 32" | 14 gr |
Obsidian Nock
Fl-Green |
H | -- |
| 700 | 5/16" | 0.274" | 5 | 32" | 14 gr |
Obsidian Nock
Fl-Red |
A | A |
| 800 | 5/16" | 0.272" | 4.6 | 32" | 14 gr |
Obsidian Nock
Rose Red |
G | -- |
| Straightness ±.003" Weight ±2 gr | ||||||||
| Traditional Only Obsidian 3K Carbon Shafting Specifics | ||||||||
|---|---|---|---|---|---|---|---|---|
| Spine | Point | OD | GPI | Length | Insert | Nock |
Point Collar |
Nock Collar |
| 350 | 5/16" | 0.296" | 8.6 | 32" | 14 gr |
Obsidian Nock
Fl-Orange |
C | C |
| 400 | 5/16" | 0.294" | 8.4 | 32" | 14 gr |
Obsidian Nock
Fl-Yellow |
C | C |
| 500 | 5/16" | 0.290" | 7.8 | 32" | 14 gr |
Obsidian Nock
White |
B | B |
| 600 | 5/16" | 0.284" | 6.6 | 32" | 14 gr |
Obsidian Nock
Fl-Green |
L | -- |
| Straightness ±.003" Weight ±2 gr | ||||||||
Services Available Any service requested may delay shipment. Items with services applied are non-refundable.
Cut Shafts to Length: Have your carbon arrows cut to length. The length is measured from the valley of the nock to the end of the shaft. Minimum length is 27". Tolerance for cut length is ±1/16".
Install Point Inserts: Choose this option to have our experts install your Point Inserts in your shafts. We use epoxy style adhesives on all inserts and most points. Once they are installed, they are permanent. If you want us to use different inserts or adapters (i.e. brass point inserts), please put a comment on your order during checkout referencing what item numbers to use together.
Standard Fletch: Our experienced fletchers will 3-fletch your arrow shafting with 5" shield left wing turkey feathers. The cock feather will be traditional barred and the two hen feathers will be your choice of white, yellow, red, or fluorescent lime (same color for all arrows). Hen feather color can be requested and will be fletched on a CLEAR cap wrap. No substitutions. Allow 4-7 additional business days for your order to be processed.
If you prefer to customize your shaft with additional options, please use our Arrow Builder
