Aluminum InsertsItem Number: INSERTDX
$5.50 $6.99 - $41.50
Made in the US
Aluminum Inserts

Aluminum Inserts

Item Number: INSERTDX
Loading
5
$5.50 $6.99 - $41.50
Made in the US


In Stock

Add To Wishlist

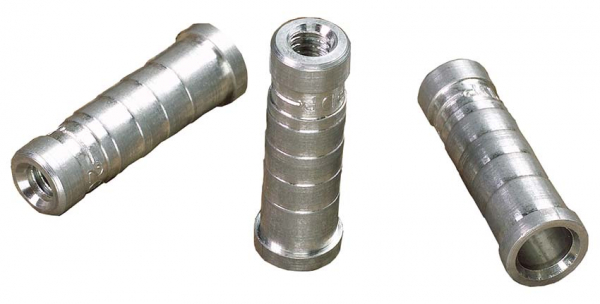

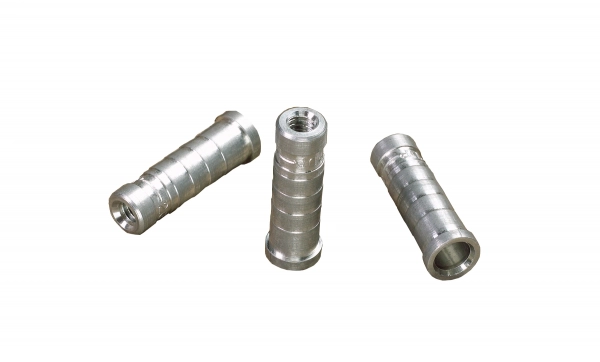

Our aluminum inserts are precision machined more accurately than industry standards to provide unbeatable broadhead alignment and are lighter in weight. Some (not all) are tapped to accept insert weights. See the chart for reference.

Click here for insert weights

Click here for insert glue

Insert Name
Weight (grains)
Fit Manufacturer Tapped for Weights
.2445 Carbon Express 5/16"
14
Carbon Express shafts like the Heritage® (150-350 spines), PileDriver™ Hunter, and Maxima Blue Streak™ Carbon Express Yes
.246 Easton/Gold Tip 5/16"
15
Traditional Only® (500-300 spines), all Beman ICS® Bowhunter shafts, and all Gold Tip shafts 3Rivers Archery Yes
1716
10
Aluminum 1716 Easton No
1816
15
Aluminum 1816 - delicate threads, be careful to not crossthread. Easton No
1820/Genesis Arrow
12
Aluminum 1820 and NASP Genesis Arrow PDP Yes
1916
15
Aluminum 1916 Easton No
2013
21
Easton XX75 Camo Hunter® 2013 Aluminum Shafts Easton No
2016
23
Aluminum 2016 and Gamegetter® 500 Easton No
2018
22
Aluminum 2018 Easton No
2020
22
Aluminum 2020 Easton No
2117
29
Aluminum 2117 and Gamegetter® 400 Easton No
2216
34
Aluminum 2216 Easton No
2219
31
Aluminum 2219 Easton No
2314
34
Easton XX75 Camo Hunter® 2314 Aluminum Shafts Easton No
2315-2317
42
Aluminum 2315, 2317, and Gamegetter® 340 and 300 Easton No
2413
40
Easton XX75 Camo Hunter® 2413 Aluminum Shafts Easton No
AD Trad/Trad Lite
26
Arrow Dynamics Traditional, and Traditional Lite shafts 3Rivers Archery Yes
AD Trad Hammerhead
25
Arrow Dynamics Hammerhead, Hammerhead Lite, and Hammerhead Heavy shafts 3Rivers Archery Yes
CX Heritage 75/90
11
Carbon Express Heritage® 90 or 75 spine shafts Carbon Express Yes
Easton ST
18
Beman CenterShot™, 6 MM FMJ, any shaft with an H Nock Easton No
Trad Only 600
11
Traditional Only® 600 spine, Easton Epic 600 spine, Easton Bloodline, and Easton ION™ shafts 3Rivers Archery Yes
