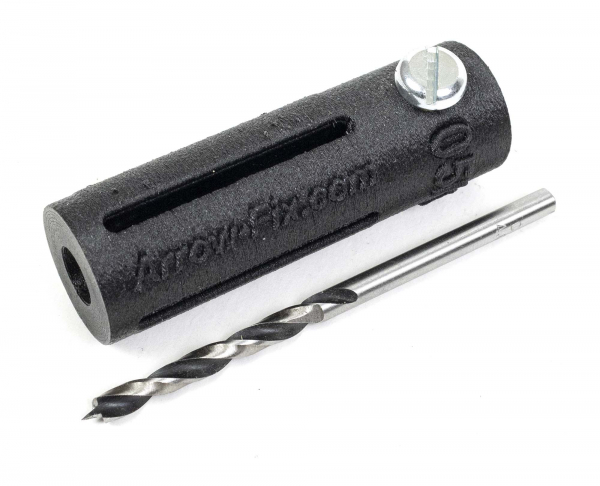

Arrow-Fix Drill Guide

The Arrow-Fix Drill Guide allows you to drill precise holes in your wood or bamboo arrows to accept tang points and tang nocks.

Using a power drill (not included), the drill guide lets you drill a center bore with a 4.0mm diameter into the shaft. You can adjust the hole depth for different length points and nocks.

The guide is recessed to hold 1-5/8" of a wooden shaft to be drilled with a 2-15/16" long drill bit. The guide measures 2-5/8" overall.

This is a great tool for wood arrow lovers. Tang points and nocks help reduce shaft breakage due to there being no notch effect. You can also use the drill guide to bore holes to accept metal weight rods for adding FOC (Front of Center) weight to your wood arrows.

The Arrow-Fix Drill Guide is available in 5/16" and 11/32" diameters. Please specify.
