Built like a tank, tuned like a race car.

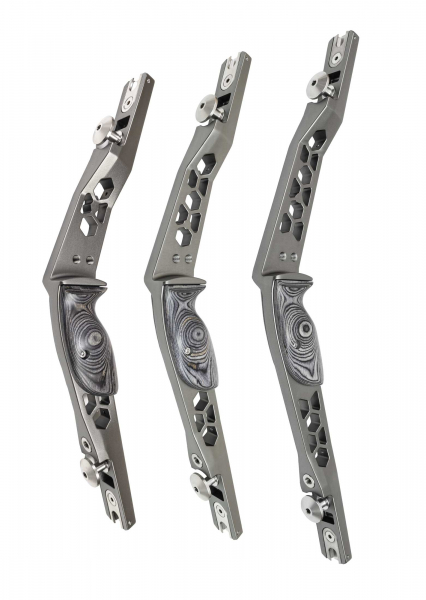

The Adam Archery Riser is a no-nonsense ILF platform designed for archers who want rock-solid stability, modern adjustability, and classic feel all in one grip. Whether you’re dialing in a barebow setup or building a fully accessorized rig, this riser gives you a dependable backbone you can grow with.
Takedown System
Features an ILF (International Limb Fitting) system for maximum compatibility and easy limb alignment using standard ILF bolts. Limb bolt adjustment allows custom tillering and draw weight reduction of approximately 1–2 lbs per full turn.
Riser Details
- Material: CNC-machined 6061-T6 aluminum. This is an extremely strong aluminum and very light. All riser lengths weigh less than 2 lbs.
- Finish: Hard-anodized surface for long-term durability and scratch resistance
- Grip: Comfortable medium wood grip that adds warmth and control to a modern metal riser
-
Shelf & Tuning:
- Radiused, cut-past-center shelf
- Adjustable arrow side plate includes a 1mm spacer system for precise center shot tuning based on arrow shaft diameter
- Designed to work with elevated rests or traditional setups
-
Accessory & Mounting Options:
- Stabilizer bushing: 5/16-24
- Sight mounting holes: threaded 10-24
- Quiver adapters included for easy bow-mounted quiver use
- Hardware: Standard ILF bolts included
String: An Adam Archery red and black D97 Flemish Twist bow string is included with everyriser.
Comes with a riser sleeve, arrow side plate, a pair of quiver adapters, and a set of Allen wrenches.
Available in Gunmetal Green in Right Hand in 17", 19", and 21" and in Left Hand in 19". Please specify.
Adam Archery 3K Carbon Foam Core Recurve Limbs are available here.
Let us set up your bow for you with our 3Rivers Bow Set-up Service
Read about Longbow and Recurve Set-up on our blog.
Choose from a left or right handed bow (choose based on what hand you Draw the bow string with), and bow weight at a 28" draw length. Remember that with a traditional bow the weight will change depending upon what your draw length is. Bow weight will change approximately ±2½ pounds for every inch from a bows rated draw length. So a bow rated 45# @ 28" bow is roughly a 42½# @ 27" or 47½# @ 29". Draw weight is marked at the nearest 5# increment to actual weight, (2#'s under and 3#'s over). This is an industry wide standard.
Bow stringer not included. A bow stringer is recommended for stringing any recurve bow or longbow. Stringing a bow without a bow stringer, or stringing it backwards will void a bow's warranty. Click here to see our Bow Stringers. It is recommended to unstring your bow if you do not plan to be shooting more than week. Store your bow on its side, or hanging vertically from a peg. Never rest the bow on the lower tip for extended periods of time. Never dry fire the bow (shooting without an arrow).
Minimum Arrow Weight - Do not shoot an arrow weighing less than eight grains for every pound of peak draw weight. For example: If your bow's peak weight is 40 pounds at your 30" draw length, do not shoot an arrow weighing less than 320 grains total arrow weight (40# x 8 gpp = 320 grains). Shooting an arrow below eight grains per pound (gpp) can cause damage to your bow similar to dry firing and possible injury to the shooter or others nearby. Damage caused by shooting an arrow that is too light will damage the bow and will not be covered under warranty by 3Rivers Archery or bow manufacturer.
