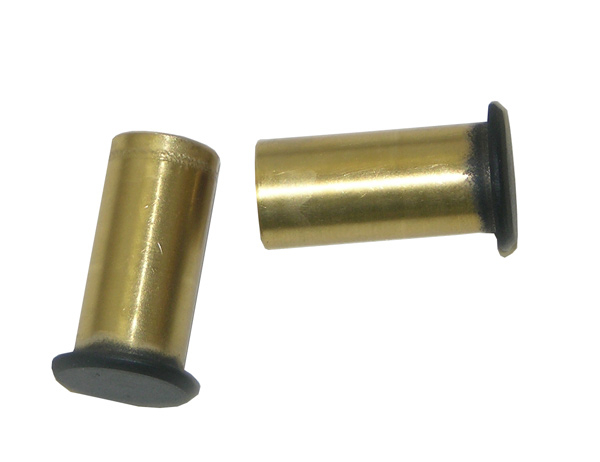

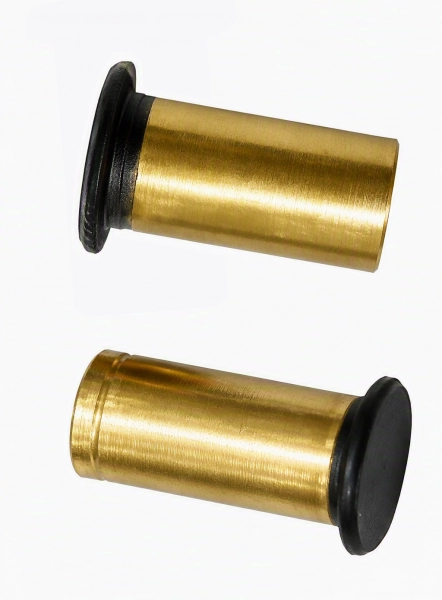

DAS™ Limb Bushing - Standard (pair)Item Number: 8177-6
Convert a set of ILF (International Limb Fitting) limbs to work with the DAS™ limb connection.
The shank of both models measures approx 3/8" in diameter, with the cap measuring 1/2" in diameter. To determine the best bushing for your limbs, measure your limb's butt thickness. It is recommended to have no more than roughly 5/16" (or .300") of the bushing exposed on the belly of the limb for a proper fit to the DAS™ limb pad.
The Standard model's shank measures 7/8" (.850" ) long, and the Short model's shank measures 23/32" (.700") long.
Need the other size? See the Short DAS Bushing here.
Read our blog post about how to switch ILF bushings to DAS™ Bushings here: Limb Bushing Fitting Instructions
