Carbon Collars Item Number: 4920X
$9.99
Carbon Collars

Carbon Collars

Item Number: 4920X
Loading
$9.99 $9.99



In Stock

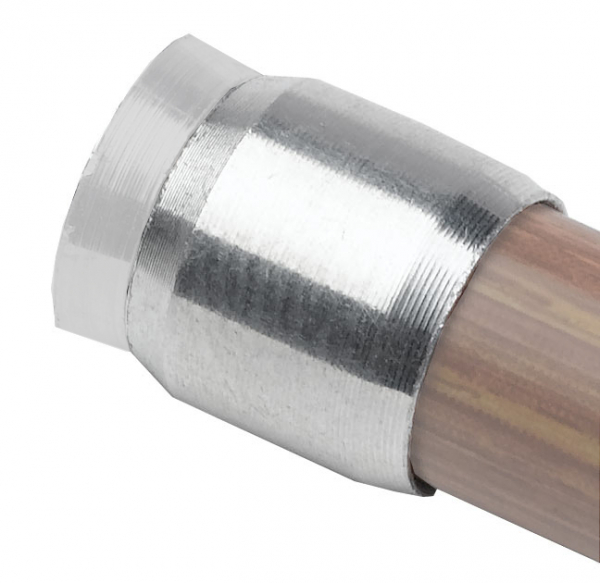

Reinforce your carbon arrows from spliting or splintering with these carbon collar aluminum footings. Installed behind the insert (before mounting inserts), these strengthen your carbon arrows to help protect from shattering when hitting a hard surface. See our Nock Collars for reinforcing your nock end.

Weigh approximately 5 grains each. Sizes have been redone to apply to more arrow brands and spine weights. Please see the charts below to help in selecting the best fit for your carbon arrows. The Inside Diameter (ID) of each carbon collar is listed so you may match it up with your arrow shafts Outside Diameter (OD). All collars will have a tolerance of +.001", but will not be under. Sold by the dozen only. It is recommended to epoxy carbon collars in place. It fills in any space between the collar and the shaft due to tolerance differences.

Note: The outside diameter of the Arrow Dynamics wood grain shafting varies by a few 1000ths due to the wood grain graphic wrap. Therefore some carbon collars will slide on, and some will require more pressure to install. On the tighter ones, use sandpaper to sand over the leading Outside Diameter edge of the cut to length shaft, start the carbon collar, then apply pressure against a hard surface to push the collar on. Do not over apply pressure as you can break your carbon shaft.

Charts are subject to shaft and collar tolerance differences.

Carbon Collar
ID
(inches)
A
.275"
B
.293"
C
.300"
D
.305"
E
.260"
F
.271"
G
.273"
H
.277"
I
.344"
J
.352"
K
.370"
L
.287"
M
.384"
N
.313"


Easton / Beman Shafts Spine Weights
  600 500 480 400 340 330 300 250
3Rivers Traditional Only
A B   C D   D
Axis Full Metal Jacket
  E   F F   G
Axis Full Metal Jacket Dangerous Game
            -- --
ST Axis N-Fused Realtree APG
  F   F G   --
ION
A A
Bloodline
    A A   L
Carbon INJEXION
    -- --     --
MFX Classic
E F   G H
ICS Bowhunter
  L   B C   C
-- indicates no current size fits

Carbon Express Shafts Spine Weights
  75 90 150 250 350 450
Heritage
L B D D N
PileDriver Hunter
      D D --
Maxima Blue Streak
    L B --
-- indicates no current size fits

Arrow Dynamics Shafts Spine Weights
Lite Trad
Traditional
I J
Lite HH Heavy
HammerHead
K K M
-- indicates no current size fits
GrizzlyStik Shafts Spine Weights
Sitka Alaskan Safari 4560 6580
GrizzlyStik
-- -- --
-- indicates no current size fits

Gold Tip Shafts Spine Weights
500 400 320 35 1535 3555 5575 7595
Traditional
        C C D N
Falcon
      B
Byron Ferguson Heavy Hunter
-- -- --
-- indicates no current size fits
